CABO LAN CAT.5E SFTP 305M SÓLIDO CU CPR + FLUKE PASSED GREY

Código do fabricante: LCS5-11CU-0305-S
EAN: 5901969424584
Garantia: 24m
Categoria TIC: Cat. 5/5e
Tipo de blindagem: SF/UTP
Material condutor: Cobre (CU)
Material de revestimento: PVC
Mostra mais
Onde comprar?
Queres tornar-te sócio?
Descrição do produto
Banner

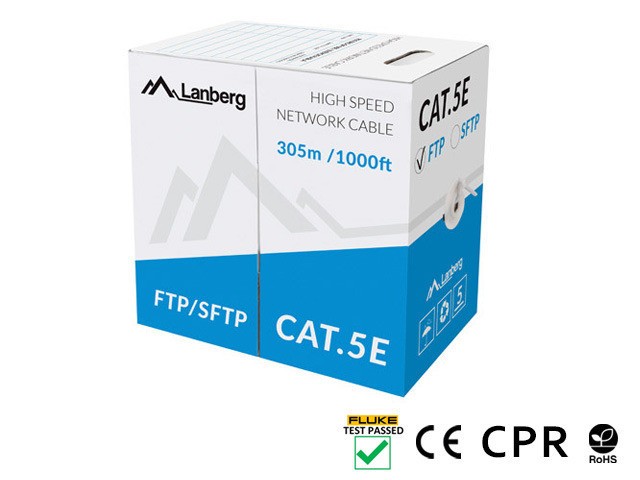

High quality LANBERG cat.5E cable on 305m reel. The product is made of 100% copper and has additional braided shielding. Each meter of cable has been marked with a printed length counter. All these elements will facilitate the work of installers, and the cable itself will be great for all kinds of data centers.



CU MATERIAL

The use of copper material in the product will ensure the highest level of safety (it can withstand high temperatures), flexibility (despite its hardness, it is easy to work with and bendable) and the highest performance - copper has the highest electrical conductivity of all base metals (in comparison, aluminum has only 61% of the conductivity of copper).

LSZH

LSZH – abbreviation for Low Smoke Zero Halogen, means that the product is made of materials that do not emit harmful gases during exposure to high temperatures, which significantly increases the level of safety in the event of the above-mentioned incident. Cables of this class are increasingly becoming a standard in new developments and requirements of modern computer networks and structures.

CPR

The Contruction Products Regulation (CPR) directive, in a nutshell, deals with fire safety for categories of cables and wires. Based on it, national regulations indicate what class of products should be used for specific construction projects, providing a sort of benchmark for manufacturers regarding the required quality.

FLUKE PASSED

Fluke Corporation is a company that specializes in measuring and documenting the performance of various ICT and electrical cables. Products that have passed Fluke's rigorous tests can be considered the best solutions in their field and be confident in the actual technical values of the cables and the quality of their workmanship.

CAT. 5E S/FTP

SPECIFICATION

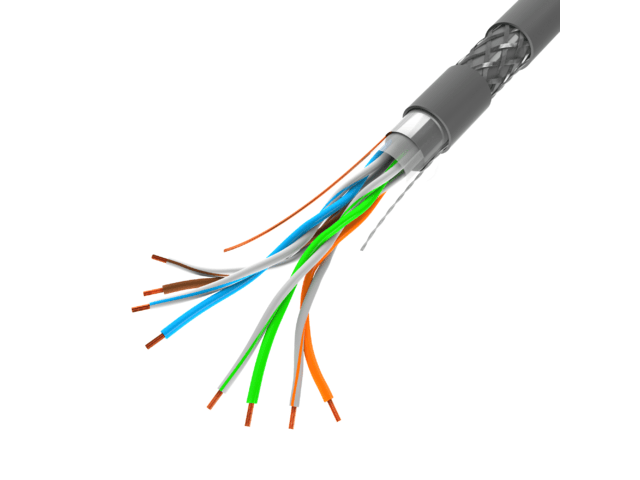

- Category 5e SFTP LAN cable (extra braided shielding).
- Length: 305m.
- Cable conductors made of pure copper (CU 100% copper).
- AWG 24 (4*2*0.51mm).
- Conductor construction: single wire.
- Color: RAL7035 gray.
- Imprint of length counter every meter of cable.
- PVC outer insulation: 6.5mm.
- HDPE conductor insulation: 1.03mm.
- Operation up to 100Mhz.
- Recommended connector/guide diameter for braided conductors: 1.1mm.
- Packaging: cardboard box.
- Package dimensions (S x G x W): 43.5x43.5x50cm.

Electrical parameters (20 degrees):

- Conductor resistance (max.): ?9.1?/100m



Electrical parameters (20 degrees). - Couple-to-ground capacitance: ?160PF / 100m

- Impedance characteristics: 100?±15..
- Storage and transport temperature: 0 - 60 degrees.
- Operating temperature: -20 - 70 degrees.
- Operating distance of 100m.



Categoria TIC
Cat. 5/5e
Tipo de blindagem
SF/UTP
Material condutor
Cobre (CU)
Material de revestimento
PVC
Categoria de reaçao ao fogo (Euroclass)
Eca
Estrutura do condutor
Fio único
Espessura do condutor
0.5 mm
AWG
24
Isolamento HDPE
0.97 mm
Espessura do encosto
0.55 mm
Diâmetro exterior
6.4 mm
Frequencia máxima de funcionamento
100 MHz
Comprimento do cabo
305 m
Cor
Cinzento
Gama de temperaturas durante a utilizaçao
-20 - 70 °C

Descarregar ficheiros

Declaration of performance (DOP)
Deklaracja właściwości użytkowych (DWU)
FLUKE TEST
Cartão de produto PL
Cartão de produto EN
Declaração de conformidade (multilingue)
